| ब्रांड नाम: | JFDL- Intercooler Inlet Steel Pipe Assembly |
| मॉडल संख्या: | WG9727530009 |
| एमओक्यू: | 1pieces |
| कीमत: | विनिमय योग्य |
| पैकेजिंग विवरण: | एकीकृत कार्डबोर्ड, अंदर बबल रैप के साथ पैकेजिंग और बाहर फिल्म के साथ लपेटा हुआ। ग्राहकों की ज़रूरतों |
| भुगतान की शर्तें: | एल/सीडी/एडी/पीटी/टी.वेस्टर्न यूनियन, मनीग्राम |

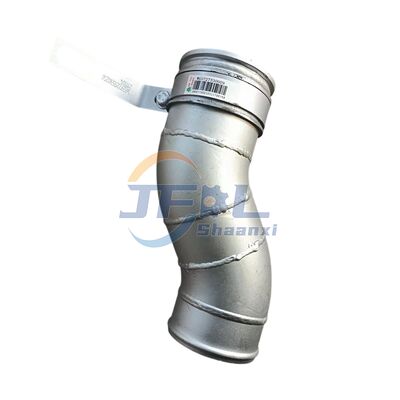

| Product Name | Intercooler Inlet Steel Pipe Assembly |
| Part Number | WG9727530009 |
| Application | Chinese Supplier SINOTRUK HOWO TX,TH7 Truck |
| Condition | New |
| Packing | Carton,Wooden Box, Pallet |
| Quality Standard | 100% Tested |
| System | Engine Intake System |
| Dimensions | Inner diameter 63mm/Outer diameter 70mm, wall thickness 3.5mm.Total length: ~680mm.Bend angles: 30°+45° |
| Connection | Flange + clamp with NBR seal ring |
| Material | Q345B low-alloy steel (15CrMo optional) Surface treatment: Electrophoresis + spray coating, salt spray resistance ≥480h |
Pressure & high temperature resistance: Adapted to turbocharger exhaust temperature of 150-200℃ and boost pressure of 0.8-1.2MPa, with no easy deformation during long-term operation.
Corrosion resistance & durability: Double-layer anti-corrosion coating combined with alloy material, suitable for dusty, high-humidity working conditions such as construction sites and mining areas.
Perfect compatibility: The bending angle and length of the steel pipe are precisely matched to the vehicle layout, avoiding interference with surrounding components, and no re-drilling or rewiring is required for installation.
|
|
| ब्रांड नाम: | JFDL- Intercooler Inlet Steel Pipe Assembly |
| मॉडल संख्या: | WG9727530009 |
| एमओक्यू: | 1pieces |
| कीमत: | विनिमय योग्य |
| पैकेजिंग विवरण: | एकीकृत कार्डबोर्ड, अंदर बबल रैप के साथ पैकेजिंग और बाहर फिल्म के साथ लपेटा हुआ। ग्राहकों की ज़रूरतों |
| भुगतान की शर्तें: | एल/सीडी/एडी/पीटी/टी.वेस्टर्न यूनियन, मनीग्राम |
| Product Name | Intercooler Inlet Steel Pipe Assembly |
| Part Number | WG9727530009 |
| Application | Chinese Supplier SINOTRUK HOWO TX,TH7 Truck |
| Condition | New |
| Packing | Carton,Wooden Box, Pallet |
| Quality Standard | 100% Tested |
| System | Engine Intake System |
| Dimensions | Inner diameter 63mm/Outer diameter 70mm, wall thickness 3.5mm.Total length: ~680mm.Bend angles: 30°+45° |
| Connection | Flange + clamp with NBR seal ring |
| Material | Q345B low-alloy steel (15CrMo optional) Surface treatment: Electrophoresis + spray coating, salt spray resistance ≥480h |
Pressure & high temperature resistance: Adapted to turbocharger exhaust temperature of 150-200℃ and boost pressure of 0.8-1.2MPa, with no easy deformation during long-term operation.
Corrosion resistance & durability: Double-layer anti-corrosion coating combined with alloy material, suitable for dusty, high-humidity working conditions such as construction sites and mining areas.
Perfect compatibility: The bending angle and length of the steel pipe are precisely matched to the vehicle layout, avoiding interference with surrounding components, and no re-drilling or rewiring is required for installation.
