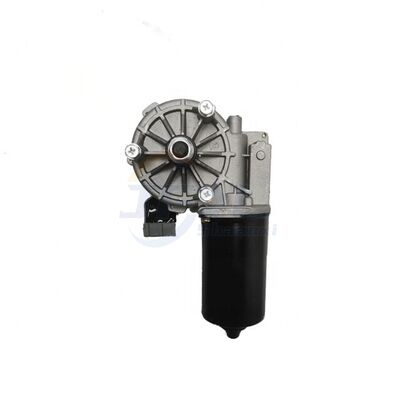

810W26401-6143 Wiper Motor for Sinotruk HOWO T5G SITRAK C7H Truck

ब्रांड नाम:	JFDL Wiper Motor
मॉडल संख्या:	810W26401-6143
एमओक्यू:	100 पीसी
भुगतान की शर्तें:	एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन

विस्तृत जानकारी

उत्पाद का वर्णन

विस्तृत जानकारी

उत्पत्ति के प्लेस:

प्रमाणन:

ISO,CCC,GSO,CE,SGS,TUV

आइटम नाम:

वाइपर मोटर

नमूना:

810W26401-6143

आवेदन:

सिनोट्रुक HOWO T5G सिट्रैक C7H ट्रक

गारंटी:

6 महीने

उपकमिलित

गुणवत्ता:

उच्च गुणवत्ता

सेवा:

24 घंटे ऑनलाइन

भुगतान:

टी/टी, वेस्टर्न यूनियन, मनी ग्राम, अलीपे

आपूर्ति की क्षमता:

100000 पीसी

प्रमुखता देना:

Sinotruk HOWO wiper motor

Truck wiper motor with warranty

SITRAK C7H wiper motor replacement

उत्पाद का वर्णन

810W26401-6143 Wiper Motor for Sinotruk HOWO T5G SITRAK C7H Truck

Sinotruk HOWO T5G SITRAK C7H Truck Spare Parts 810W26401-6143 Wiper Motor

Product Overview

Product: Windshield Wiper Motor Assembly
Part Number: 810W26401-6143
Common Name: Heavy-Duty Truck Front Wiper Motor

Technical Specifications

Attribute	Specification
Part Number	810W26401-6143 / Also referenced as 81.26401.6143
Voltage Rating	24V DC - Designed for heavy-duty trucks with dual-battery electrical systems
Rated Power	Approx. 80W - 100W
No-Load Current	≤ 3.0A
Operating Current	≤ 5.0A under normal load
Output Torque	High starting torque to drive large-size wiper blades on wide truck windshields
Housing Material	Die-cast aluminum alloy - excellent heat dissipation and corrosion resistance
Gear Material	High-strength alloy steel gears with precision machining
Transmission Type	Precision helical gear reduction system for smooth and quiet operation
Protection Rating	IP66 - Fully dust-tight and protected against powerful water jets
Weight	Approx. 2.2 kg - 2.8 kg (including gearbox and mounting bracket)
Functionality	Dual-speed (low/high), intermittent mode, auto-return function

Performance Characteristics

Dual-Speed & Intermittent Control: Supports high speed, low speed, and intermittent wiping modes, allowing drivers to adjust based on rainfall intensity.
Silent Operation: Utilizes precision helical gears that reduce meshing noise and vibration, ensuring quiet performance even at high loads.
Auto-Return Function: When switched off, the wiper arms automatically return to the preset rest position at the bottom of the windshield — essential for aesthetics and safety.
Overload Protection: Integrated thermal circuit breaker automatically cuts power if motor current surges due to blockage (e.g., ice, snow, or mechanical jam). Prevents coil burnout and extends motor life.
Robust Durability: Engineered for continuous use in extreme conditions including high humidity, dusty environments, and frequent thermal cycling. Ensures long-term reliability in commercial transport operations.
Optimized for Large Windshields: Specifically designed to handle the high mechanical load from long wiper blades used on modern cab-over-engine heavy trucks.

Compatible Vehicles

Sinotruk (China National Heavy Duty Truck Group):

SITRAK Series (Premium Line - MAN-based):
- C7H
- C5H
- G7H
- G5H
HOWO Series (Mainstream Heavy-Duty Models):
- HOWO T7H
- HOWO T5G
- HOWO TX
- HOWO TH7

Other Compatible Applications:

Special-purpose vehicles using identical cab designs including tractor units, dump trucks, concrete mixers, fire trucks, and crane carriers.

Cross Reference Part Numbers

Brand / Supplier	Part Number(s)	Notes
Sinotruk OEM	810W26401-6143	Primary original equipment number
Sinotruk OEM	81.26401.6143	Alternate formatting; same unit
Sinotruk OEM	81264016142	Earlier version or minor variant
Sinotruk OEM	81264016132	Possible alternative for specific configurations
Aftermarket / Generic	WG1664741022	Shared component used across some HOWO models
MAN Reference	81.26401-6143	Indicates technical origin from MAN TG platform

Usage & Maintenance Guidelines

Recommended Practices:

Never Operate on Dry Glass: Running the wipers without washer fluid or rainwater creates excessive friction, leading to overloaded motor, premature brush/gear wear, and blade damage. Only activate when glass is wet.
Winter Ice Prevention: In cold climates, never force-start the wipers if blades are frozen to the windshield. Manually remove ice/snow first and use de-icing fluid or cabin heat to thaw the area. Forcing operation can cause gear stripping, linkage deformation, or motor stall/overheating.
Inspect Linkage Mechanism Regularly: If wipers move slowly, jerk, or make abnormal noises, check for rusted, bent, or seized linkages and lubricate pivot points. Do not assume the motor is faulty immediately.
Ensure Proper Sealing During Installation: Replace or correctly install the rubber gasket/seal between the motor and firewall to prevent water ingress into the cabin, corrosion of wiring connectors, and short circuits or grounding faults.
Verify Voltage Compatibility: This is a 24V DC motor only. Do not connect to a 12V power source for testing as it will result in insufficient torque, failure to start or operate properly, and potential stalling and overheating.
Use Genuine or High-Quality Blades: Mismatched or oversized wiper blades increase mechanical load beyond design limits.

Common Mistakes to Avoid:

Using incorrect fasteners during reinstallation (may compromise sealing)
Bypassing the thermal protector
Ignoring early signs of sluggish performance
Installing without checking alignment of the wiper transmission

Additional Information

Critical Visibility Component: Directly impacts driver safety by maintaining clear forward visibility during adverse weather conditions.

Electrical Integration: Typically works with the vehicle's wiper switch, relay module, and sometimes BCM (Body Control Module) for intermittent timing control.

Failure Symptoms:

Wipers stop mid-sweep
Only one speed works
Motor hums but doesn't turn
Auto-return fails (arms park in wrong position)
